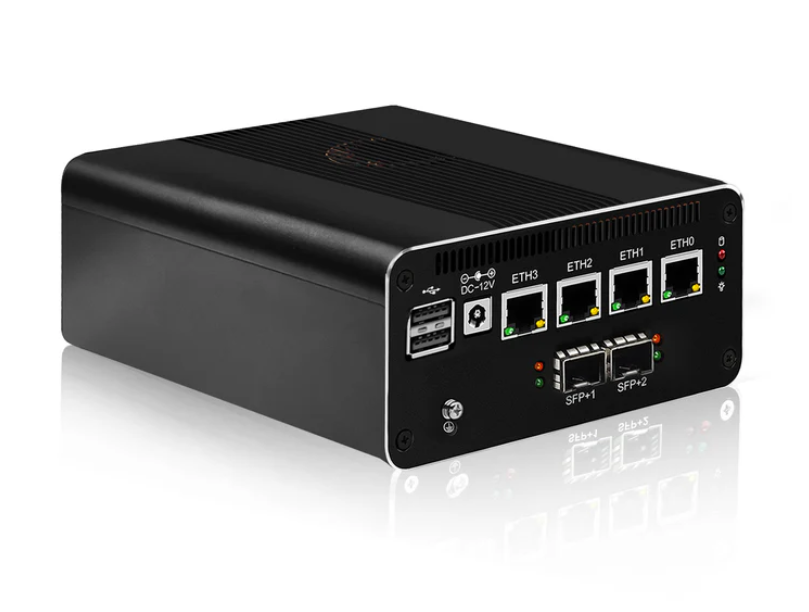

CWWK Mini PC Router Micro Firewall Appliance, 2 X 10GbE SFP+, N150 OPNsense Hardware, 4 x i226V 2.5GbE LAN Ports, Console COM, Router OS DDR5 RAM NVMe SSD

CWWK Mini PC Router Micro Firewall Appliance, 2 X 10GbE SFP+, N150 OPNsense Hardware, 4 x i226V 2.5GbE LAN Ports, Console COM, Router OS DDR5 RAM NVMe SSD

Rs. 64,000.00
Skip to product information
CWWK Mini PC Router Micro Firewall Appliance, 2 X 10GbE SFP+, N150 OPNsense Hardware, 4 x i226V 2.5GbE LAN Ports, Console COM, Router OS DDR5 RAM NVMe SSD
  • CWWK Mini PC Router Micro Firewall Appliance, 2 X 10GbE SFP+, N150 OPNsense Hardware, 4 x i226V 2.5GbE LAN Ports, Console COM, Router OS DDR5 RAM NVMe SSD
  • CWWK Mini PC Router Micro Firewall Appliance, 2 X 10GbE SFP+, N150 OPNsense Hardware, 4 x i226V 2.5GbE LAN Ports, Console COM, Router OS DDR5 RAM NVMe SSD
CWWK Mini PC Router Micro Firewall Appliance, 2 X 10GbE SFP+, N150 OPNsense Hardware, 4 x i226V 2.5GbE LAN Ports, Console COM, Router OS DDR5 RAM NVMe SSD

CWWK Mini PC Router Micro Firewall Appliance, 2 X 10GbE SFP+, N150 OPNsense Hardware, 4 x i226V 2.5GbE LAN Ports, Console COM, Router OS DDR5 RAM NVMe SSD

Rs. 64,000.00

Product Description

CWWK Mini PC Router Micro Firewall Appliance, 2 X 10GbE SFP+, N150 OPNsense Hardware, 4 x i226V 2.5GbE LAN Ports, Console COM, Router OS DDR5 RAM NVMe SSD

(RAM/SSD not included and to be ordered separately)

Key Features and Benefits

  • Multi-Gigabit Networking: Features 4 x 2.5GbE (Intel i226V) and 2 x 10GbE SFP+ ports to handle heavy traffic routing, VPN encryption, and advanced firewall rules without breaking a sweat.
  • Triple 4K Display Output: Integrated Intel UHD Graphics supports simultaneous output across HD, DisplayPort (DP), and Type-C, all at stunning 4K@60Hz resolution.
  • Massive Expandability: Features a PCIe x8 slot that can support an Intel 82599ES dual 10GbE SFP+ LAN card or up to four M.2 NVMe SSDs for massive storage arrays.
  • Advanced DDR5 Memory: Next-generation DDR5 support (4800MHz/5600MHz) expandable up to 32GB for flawless multitasking and heavy virtualization.
  • Exceptional Cooling & Durability: Crafted with a premium aluminum alloy chassis that acts as a heat sink, paired with a dedicated turbo cooling fan for optimal thermal dissipation under 24/7 loads.
  • Versatile OS Support: Ready out-of-the-box for OPNsense, pfSense, OpenWrt, Proxmox, ESXi, Linux, and Windows.

Technical Specifications

Description Specification
CPU Model Intel N150 (4 core 3.4GHz 6W Processor)
RAM Supports 1x DDR5 SO-DIMM (Up to 16GB)
Storage 1 1x M.2 NVMe SSD, 1x SATA 3.0
Expansion Slots 1x PCIe x8

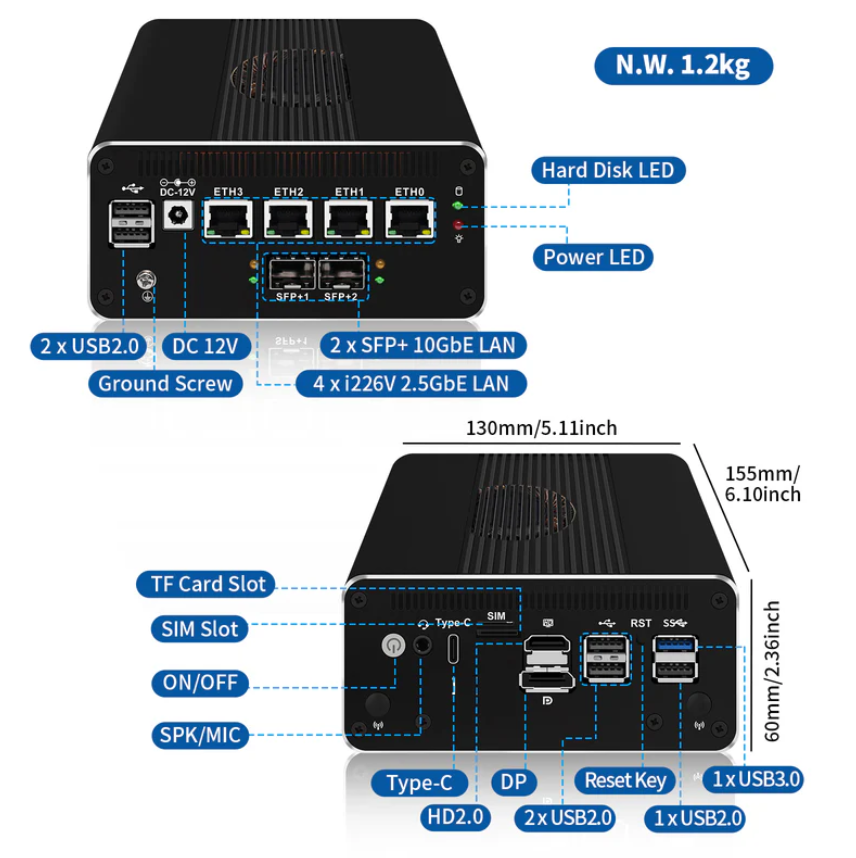

Network Ports (UTP) 4x Intel i226V 2.5GbE RJ45
Network Ports (SFP+) 2x 10G SFP+
IO Ports 1x USB 3.0, 5x USB 2.0, 1x Console COM, 1x Type-C (Supports Power Delivery), Audio SPK/MIC, Reset Key
Display Supported HD + DP + Type-C (4K@60Hz Output)
Power DC 12V
Supported OS OPNSense, pfSense, OpenWRT, Proxmox, Linux, Windows



Items included in Delivery box

  • 1x Mini PC Router Firewall Appliance
  • 1x Power Adapter
  • RAM/SSD Not Included
